激光水平儀 BMI TORPEDO 3
|
|
|
|
產品名稱：激光水平儀 BMI TORPEDO 3
產品編號:
34400002
激光水平儀 ,BMI TORPEDO 3
不含底座
Time-saving precision laser tool. Robust aluminium casing. Strong magnets in the measuring surface. Easy to use. Blister pack, with levelling platform (not illustrated). Batteries included

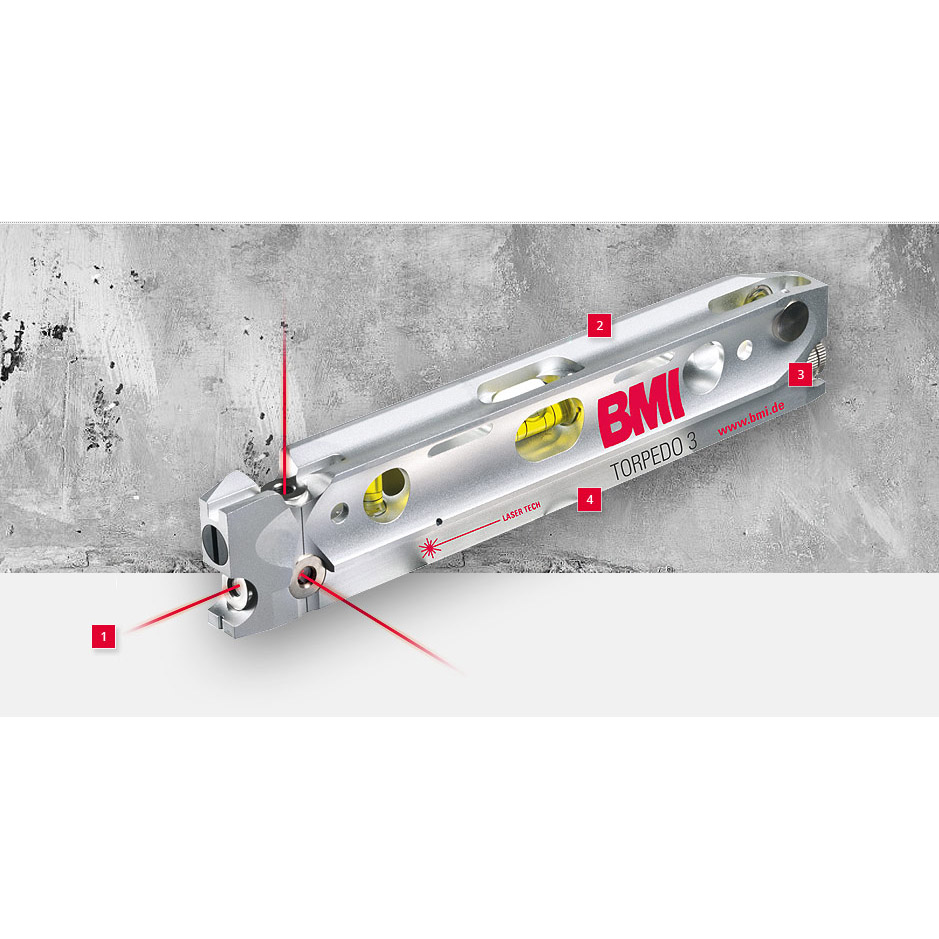

Legend
13 beams: vertical, horizontal, lateral
2CNC robust aluminium casing
3Laser reference edge
4equipped with a strong magnet system
Applications
- Aligning tiles, shelves, cupboards, adjusting windows and door frames.
- Grading elevations
如果您想購買此商品，或需要咨詢此商品相關信息，請聯系我們的銷售代表。
電話: 022 83726298 022 83726299
022 8372 6763 022 8372 6769
傳真: 022 8372 6222
Email: info#wollschlaeger.com.cn
(閣下如需使用此郵箱，請把"#"替換為"@")
|
|
|
| 產品編號 | 激光水平儀 BMI TORPEDO 3 規格說明 | | 34400 | 激光水平儀組套 BMI TORPEDO 3 | | 34400001 | Laser-Nivellierset compact, 400 mm BMI
激光水平儀組套 ,BMI TORPEDO 3 | | 34400002 | 激光水平儀 ,BMI TORPEDO 3
不含底座
Technical Specifications
Type of laser: red diode laser, wavelength 635 nm
Output: Laser class 2
Manual levelling 3 bubble vials. Levelling-platform
Accuracy: ± 6 mm/20 m
Range: up to 30 m
Power supply: 3 x 1,5 Volt batteries type AAA LR03A
Tripod connection size: 1/4"
Operating range: -10° C to 50° C
Casing: dustproof, dirt-proof and waterproof
Dimensions: 240 x 25 x 45 mm
Weight: 415 g |
